Site Plan Example: What They Include, Why They Matter, and How to Get Yours Right

Every successful construction project starts with a detailed plan. Whether you’re building a custom home, creating an ADU, or developing a multi-family property, the first step is understanding your site and how your proposed structures will interact with it. That’s where a site plan comes in. A well-drawn site plan provides a clear roadmap for turning your vision into a fully permitted, buildable reality.

In this guide, we’ll explore the role of site plans, show you real-world site plan examples, and explain how property owners can benefit from having a complete, professional layout before submitting for permits. You’ll see how the right planning approach can save time, prevent issues, and lead to faster approvals.

What Is a Site Plan and Why Is It So Important for Property Owners?

A site plan is a scaled drawing that shows how a proposed project will be situated on a specific piece of land. It includes all relevant property boundaries, property lines, utilities, driveways, existing structures, and proposed buildings. Most site plans are created as part of the building permit application process and are required by your city or county.

Site plans are critical for:

• Getting a building permit
• Understanding property constraints
• Coordinating with contractors and engineers
• Communicating the layout to decision-makers
• Complying with zoning regulations and development codes

The site plan is the visual summary of how your vision fits the land. For property owners planning a new home or ADU, the ability to review a site plan example can help clarify how everything will work together before construction begins.

Core Elements of a Site Plan: What Should Be Included About Property Lines?

When done right, site plans are not just technical drawings. They are communication tools that reveal everything from how rainwater will flow off your roof to where your sewer line will connect. Below are the key elements found in most well-prepared site plans.

1. Property Boundaries, Setbacks, and Easements

Understanding the limits of your property is the first step in site planning. Site plans must clearly mark all property boundaries, along with labeled property lines and any setbacks defined by the city or county. Setbacks determine how close buildings can be to the edge of the lot. Easements, such as utility corridors, must also be shown since they limit where you can build. These areas are essential to identify early so the proposed building does not overlap or encroach into restricted zones.

2. Existing Site Features

An accurate site plan should include all existing site features such as fences, utility poles, trees, walkways, and driveways. Existing trees often require preservation or removal permits depending on the city. Retaining walls, grade changes, and other existing improvements need to be documented to help determine elevation changes and how much grading will be necessary.

3. Proposed Improvements and Structures

This section is where your project begins to take shape. Site plans must clearly show all proposed structures, including the main house, detached ADUs, garages, patios, and any accessory buildings. Proposed features like fences, walkways, and retaining walls should be drawn and labeled. Site plans also highlight patios, decks, and other exterior spaces that contribute to the full layout of the site.

4. Utility Connections and Infrastructure

Your site plan should mark the location of existing and proposed utility connections. This includes water, sewer, electrical, gas, and stormwater systems. Cities generally require you to show how new buildings will be served by utilities and where utility lines will be installed. Proper planning of utility placement can avoid costly rework during construction and help the permitting process move more smoothly.

5. Topography and Grading

Topographic information is essential for sloped lots or properties near hills. The site plan should display contour lines to illustrate elevation changes across the property. Spot elevations are sometimes required at key points such as the foundation, driveways, and patios. Grading plans show how the ground will be shaped to support the proposed structures, manage water runoff, and ensure stable foundations.

6. Access and Circulation

Site plans must also identify access points for vehicles and pedestrians. This includes driveways, curb cuts, sidewalks, and any required emergency access routes. Depending on the type of property and zoning, you may need to meet specific parking and circulation standards. Clear labeling of access paths and turning radii ensures the design is functional and code-compliant.

7. Dimensions, Labels, and Graphic Standards

A professional site plan will include dimensions for all features, including building footprints, lot dimensions, and distances from the property line. Every item should be labeled clearly. Plans must include a north arrow, graphic scale, property address, and a legend if multiple line types or symbols are used. These elements ensure the plan is complete and can be interpreted by any reviewer or contractor.

Site Plan Examples by Project Type

Site plans vary depending on the type of project. Below are several real-world site plan examples that demonstrate how design elements are tailored to fit different property types and construction goals.

Site Plan Example for a Custom Home in El Dorado Hills

On a hillside lot, a custom home site plan needs to reflect significant elevation changes, topography constraints, and wildfire zone regulations. The plan must show accurate grading details, slope contours, and the layout of proposed structures relative to the existing terrain. Driveways and retaining walls are carefully drawn to provide safe access and structural stability.

Site Plan Example for an ADU in Sacramento

In urban neighborhoods, creating a new ADU involves maximizing space within tight property boundaries. A site plan example for an ADU might show the unit placed behind the primary house, with setback dimensions carefully measured from the side and rear property lines. Utility connections for water, sewer, and electricity must be clearly marked. Existing trees and fencing also appear to show how the new unit interacts with the surrounding property features.

Site Plan Example for a Multi-Family Project in San Jose

For a small-scale multi-family development, the site plan includes several proposed buildings, shared driveways, and common areas. The layout must allow for vehicle circulation, guest parking, and emergency access. Utility infrastructure, stormwater management, and pedestrian walkways are all drawn and labeled. The complexity of this type of plan requires coordination between architectural, civil engineering, and surveying teams.

Site Plan Example for a Subdivision in Folsom

Subdivision plans are among the most complex in terms of planning and engineering. A subdivision site plan shows new property lines being created, proposed building sites for future homes, and the installation of public infrastructure such as streets, sewer systems, and water lines. The drawings must include lot dimensions, property addresses for new parcels, and detailed labeling of each segment. These plans often serve as the foundation for planning department approval.

What Makes a Site Plan Permit-Ready?

For your plan to be accepted during the building permit process, it must meet several minimum requirements. Permit-ready site plans must be drawn to scale and accurately reflect the existing site conditions and the proposed work. Dimensions, property lines, and utility details must be clearly labeled.

Permit submittals generally require the site plan to be part of a complete drawing set, often including a floor plan, elevation drawings, and structural plans. The city will review the plan to determine whether it complies with local zoning, land use codes, and development standards. The accuracy and clarity of your site plan play a major role in whether your permit is approved the first time or sent back for revision.

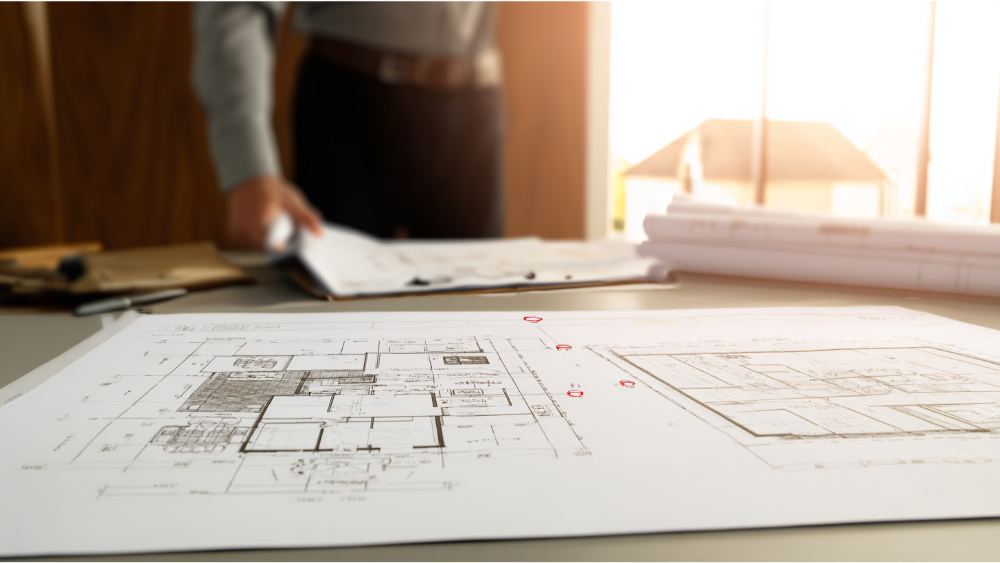

Common Mistakes to Avoid When Reviewing or Creating a Site Plan

While reviewing a site plan or working with a team to create your own site plan, watch out for these common issues:

• Using outdated information or incorrect property lines
• Failing to show all proposed structures
• Omitting utility service lines or sewer locations
• Forgetting to draw in existing trees or landscape features
• Mislabeling dimensions or using the wrong scale
• Leaving out required graphic elements like the north arrow or property address
• Submitting the plan without verifying accuracy or alignment with floor plans

These mistakes can lead to rejected permits and costly construction delays. A professional team can help identify and avoid these pitfalls early in the process.

How GSDE Approaches Site Plans: Integrated, Precise, Client-Focused

At Golden State Design & Engineering, we know that a well-drawn site plan is the cornerstone of every successful project. Our team integrates architectural planning, civil engineering, structural engineering, and land surveying into one seamless service. We create each plan based on accurate boundary data, ensuring property lines, setbacks, and easements are all correct.

Our site plans are drawn using precise tools and are customized to reflect the unique layout, utilities, and proposed structures for your project. Whether you’re building a new home, adding an ADU, or preparing for subdivision, we provide site plans that are fully ready for submission.

From the earliest planning stages through permitting, we work closely with property owners to ensure each site plan meets city requirements, reflects the goals of the project, and supports long-term development success.

FAQs About Site Plans

How much does a site plan cost in California?

The cost of a site plan varies based on property size, location, and complexity. A simple site plan for an ADU or new home might cost between $1,500 and $3,000. More complex projects like subdivisions or multi-family developments require additional surveying and engineering work, which can increase the cost.

Who is responsible for creating a site plan?

Site plans are typically created by a combination of professionals including land surveyors, architects, and civil engineers. The surveyor maps the land and property boundaries, while the design team uses that data to draw the layout of the proposed structures. At GSDE, our team handles all of these roles in-house, which ensures accuracy and faster turnaround.

Is a plot plan the same as a site plan?

While the terms are often used interchangeably, a plot plan typically refers to a more simplified drawing showing just the layout of the structures on a lot. A full site plan includes much more detail including utilities, grading, existing trees, access, and proposed improvements.

Do I need a site plan to get a building permit?

Yes. A site plan is required in most jurisdictions as part of the building permit application. Without it, the city cannot determine whether the project complies with zoning and development standards.

Can I create my own site plan?

While it’s technically possible for a property owner to create their own site plan using online tools or templates, most cities require that site plans be professionally prepared based on a current boundary survey. Creating your own site plan may be acceptable for informal planning or early conceptual layouts, but for permit submittals, a professionally drawn and stamped site plan is usually required.
